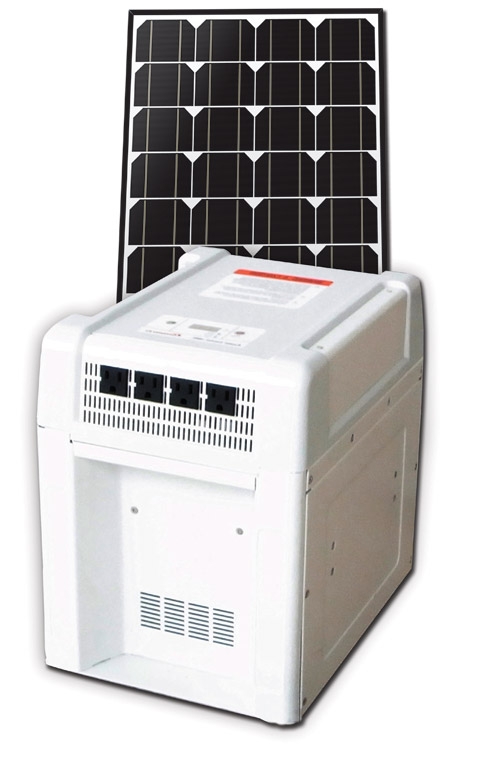

Solar Backup Power Kit 40 Watt Solar Panel
This complete emergency back-up power kit includes everything you need in the event of power outages or for your portable power needs. This compact system delivers up to 1800 Watt of AC power across 4 outlets and is perfect for camping, picnics, and boat, RV’s or to ensure you will always have power supply to your home or RV. You can even plug in the power supply to your home's electricity to ensure uninterrupted power to your plug-in devices the internal transfer switch automatically detects when your home's electricity has stopped and begins utilizing its stored energy. This system 40-watt solar panel uses the sun’s energy while the 60Ah battery stores this energy until you are ready to use it. With the included 50 feet of cabling offers you flexibility in the placement of the solar panel so you can put it in the perfect position to receive the maximum amount of sun during the day. This solar back-up power kit is modular and can be expanded to allow as many auxiliary batteries as needed up to 130-watt from a solar array per auxiliary battery.
Items included:
1800-Watt Inverter, 60Ah Battery, 40-Watt Solar Panel, 8Amp Charge Controller, 5 Amp AC Charger and 50’ Extension Cable
Solar Panel:
|
Monocrystalline
|
Solar Panel Maximum Power:
|
40 Watts
|
Solar Panel Maximum Current:
|
2.8 Amps
|
Solar Panel Open Circuit Voltage:
|
21.5 DC
|
Battery:
|
60 Ah - Deep Cycle, Sealed Lead Acid
|
Battery Capacity:
|
12V, 60Ah
|
Inverter Maximum Power:
|
1800 Watts
|
Inverter Output Voltage:
|
120 Volts AC
|
AC receptades:
|
4
|
Inverter Output wavform:
|
Modified Sine Wave
|
Inverter Peak Efficiency:
|
90%
|
AC Charger Maximum Current:
|
5 Amps
|
AC Charger Output Voltage Charge:
|
14.8 Vdc
|
AC Charger Output Voltage Float:
|
13.5 Vdc
|
AC Charger Output Voltage Recharge:
|
12.6 Vdc
|
AC Charger Charging Type:
|
Four-Stage (bulk, absorption, float with timer)
|
Complete Emergency Back-Up kit
|
|
Internal Transfer Switch
|
|
60 Ah battery
|
|
1800 watt MSW inverter with 4 AC receptacles
|
|
Internal 8 Amp solar charge controller
|
|
5 Amp AC charger and transfer switch
|
|
50’ of extension cable
|
|
Environmentally friendly
|
|
Able to run 1800 watts of power available from four 120V AC outlets
|
|
Silent operation with no fuel or fumes
|
|
Simple plug and play system – setup and use
|
|
Modular design allows for easy solar and battery expansion
|
|
